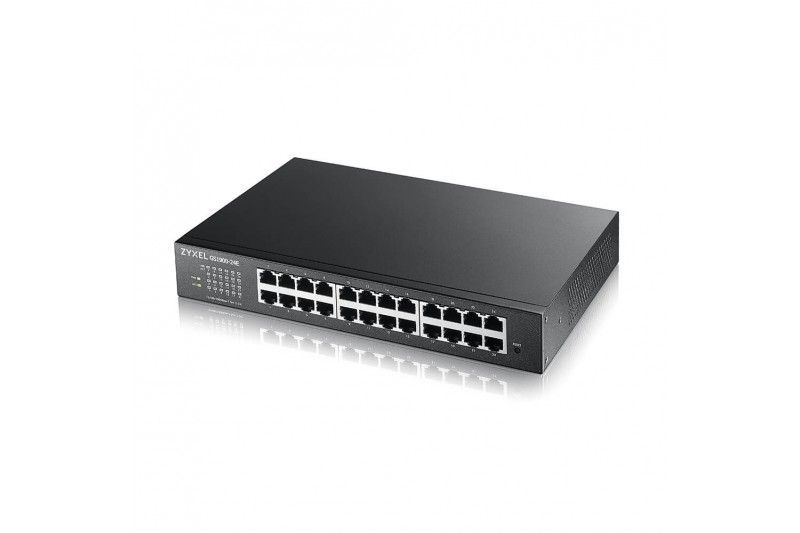

Zyxel GS190024EV3 - commutateur - 24 ports Giga L2 Montable sur rack
€124.90
Le prix comprend la
TVA (20%)
€20.82
En stock
Détails du produit
Zyxel GS1900-24E-EU0103F. Type de commutateur: Géré, Banc de commutateurs: L2. Type de port Ethernet RJ-45 de commutation de base: Gigabit Ethernet (10/100/1000), Quantité de ports Ethernet RJ-45 de commutation de base: 24. Full duplex. Répertoire MAC: 8000 entrées, Capacité de commutation: 48 Gbit/s. Standards réseau: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE.... Connecteur d'alimentation: Prise d’entrée AC. Montage mural, Grille de montage, Format: 1U
Caractéristiques de gestion
Type de commutateur
What switch device has, managed or unmanaged.
Géré
Banc de commutateurs
A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).
L2
Qualité de service (QoS)
Gestion basée sur le web
Using a website/web application to manage something.
Journal des événements du système
Support MIB
RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9),RFC 1215 generic traps, RFC 1493 bridge, Zyxel private common MIB
Connectivité
Quantité de ports Ethernet RJ-45 de commutation de base
The number of basic switching RJ-45 Ethernet ports (sockets).
24
Type de port Ethernet RJ-45 de commutation de base
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Connecteur d'alimentation
Prise d’entrée AC
Réseau
Standards réseau
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Soutien 10G
The product can use Oracle 10G, which is a database management system introduced in 2003.
Port mirroring (Mise en miroir des ports)
Full duplex
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Assistance contrôle des flux
Agrégation de lien
Protocles Spanning Tree (STP)
LAN Ethernet : taux de transfert des données
The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
Apprentissage automatique d'adresse MAC pris en charge
Support VLAN
A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Fonctions LAN virtuelles
Stacked VLAN, VLAN mapping
Transmition des données
Capacité de commutation
The data transfer capacity of the switch per second.
48 Gbit/s
Taux de transfert
35,7 Mpps
Répertoire MAC
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
8000 entrées
Enregistrement-et-réémission
Support de trames étendues (Jumbo Frames)
Trames géantes
9000
Mémoire cache de paquet
0,525 Mo
Sécurité
Fonctions DHCP
DHCP client
Filtrage IGMP
Algorithme de sécurité soutenu
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
802.1x RADIUS
Filtrage d'adresse MAC
Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
Sécurité de port statique
Support SSH/SSL
Protection par mot de passe
The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
Type d'authentification
Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data.
RADIUS, TACACS+
Design
Grille de montage
The type of mounting that can position devices in a shelving system (rack).
Empilable
Devices can be placed on top of each other.
Format
Description des caractéristiques visibles du produit.
1U
Couleur du produit
La couleur, p. ex. rouge, bleu, vert, noir, blanc.
Noir
Bouton de réinitialisation
Voyants
Montage mural
The product can be mounted on (attached to ) a wall.
représentation / réalisation
Temps moyen entre pannes
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism
804,714 h
Puissance
Source d'alimentation
What is providing power for the product e.g. mains electricity.
Secteur
Bloc d'alimentation inclus
There is a power supply with this product.
Tension d'entrée AC
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Fréquence d'entrée AC
50 - 60 Hz
Consommation (max)
The maximum amount of power used by the device.
15,1 W
PoE (alimentation via le port Ethernet)
Connexion Ethernet, supportant l'alimentation via ce port (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Conditions environnementales
Température d'opération
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Température hors fonctionnement
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Humidité relative de fonctionnement (H-H)
10 - 95%
Taux d'humidité relative (stockage)
10 - 95%
Dissipation thermique
The heat expressed in British thermal units per hour; generated by the power supply
51,49 BTU/h
Poids et dimensions
Largeur
The measurement or extent of something from side to side.
267 mm
Profondeur
The distance from the front to the back of something.
162 mm
Hauteur
Height of the product
42 mm
Poids
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1,56 kg
Contenu de l'emballage
Câbles inclus
Secteur
Kit de montage en rack
Informations sur l'emballage
Type d'emballage
The type of product package e.g. box.
Boîte
Largeur du colis
The distance from one side of the packaging to the other.
325 mm
Profondeur du colis
The distance from the front to the back of the packaging.
223 mm
Hauteur du colis
The distance from the top to the bottom of the packaging.
71 mm
Poids du paquet
Weight of the packaged product.
2,05 kg
Certificat
Certification
EMC ■ CE, FCC, C-Tick, Class A (GS1900-24/24EP/24HPv2/48/ 48HPv2) ■ CE, FCC, C-Tick, Class B (GS1900-8/8HP/10HP/16/24E) ■ BSMI CNS13438 • Safety ■ LVD EN60950-1 ■ BSMI CNS14336-1 ■ CB IEC60950-1 (GS1900-8HP/10HP/16/24E/24) • RoHS compliant
Données logistiques
Code du système harmonisé
85176990
